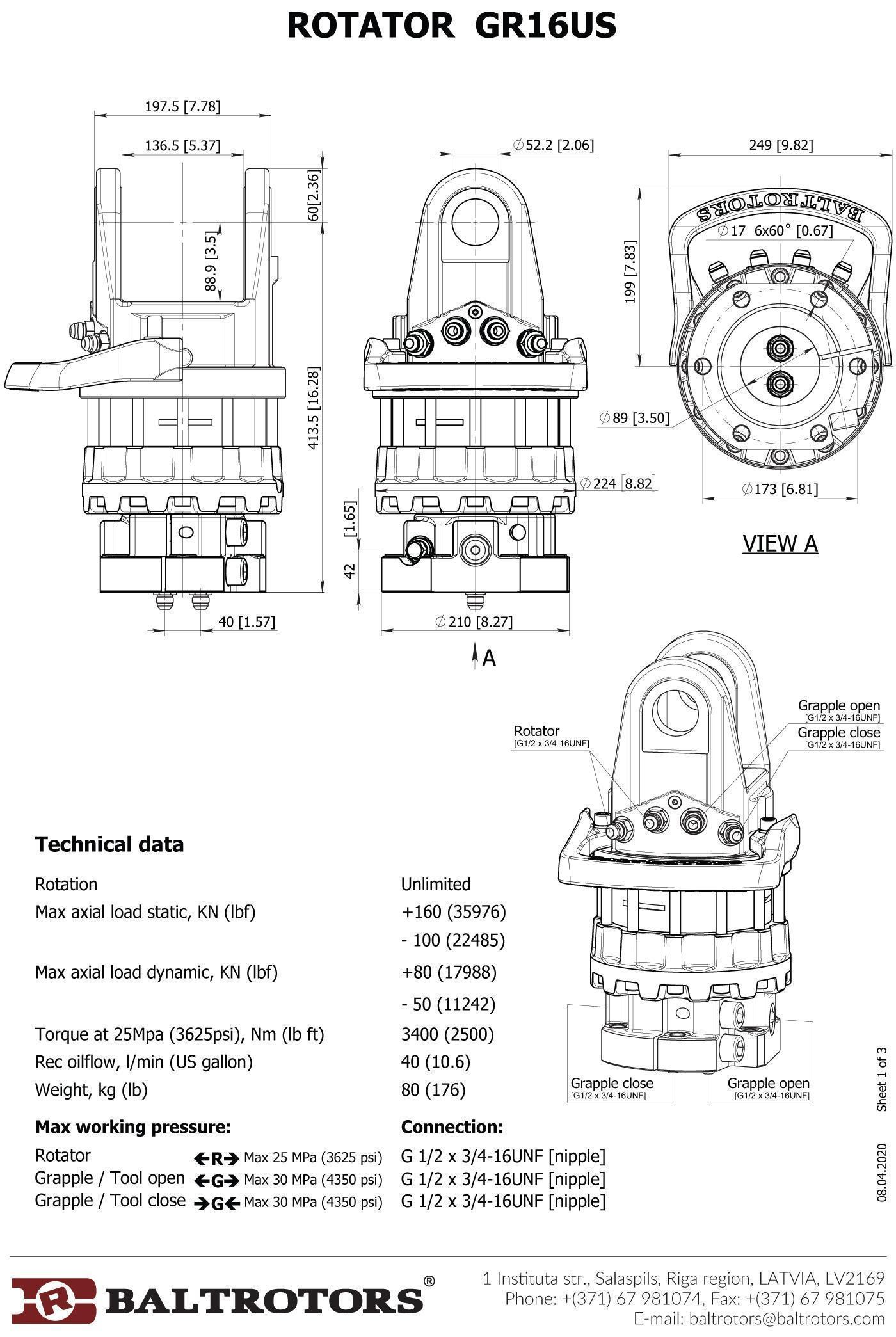

Technical specification
Dimensions
Compatible products
Rotation Unlimited
Max. axial load static +160 -100 kN (+35976 -22485 lbf)
Max. axial load dynamic +80 -50 kN (+17988 -11242 lbf)
Torque 3400 Nm (2500 lb ft)
Rec. oilflow 40 l/min
Weight 80 kg
Upper connection L 136.5 mm (5.37 in)
Upper connection D 52.2 mm (2.06 in)
Lower Axle d & hole D
Lower Flange d x pos & bolt hole D
Warranty 2 years
