Technical specification

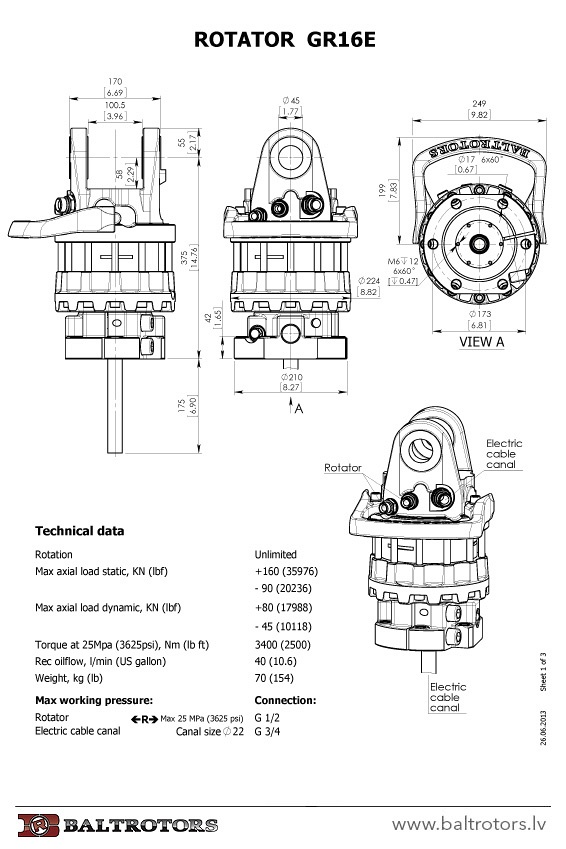

Dimensions
Compatible products
Rotation Unlimited
Max. axial load static +160 -90 kN (+35976 -20236 lbf)
Max. axial load dynamic +80 -45 kN (+17988 -10118 lbf)
Torque @-MPa 3400 Nm (2500 lb ft)
Rec. oilflow 40 l/min
Weight 70 kg
Upper connection L 100.5 mm (3.96 in)
Upper connection D 45 mm (1.77 in)
Warranty 2 years
