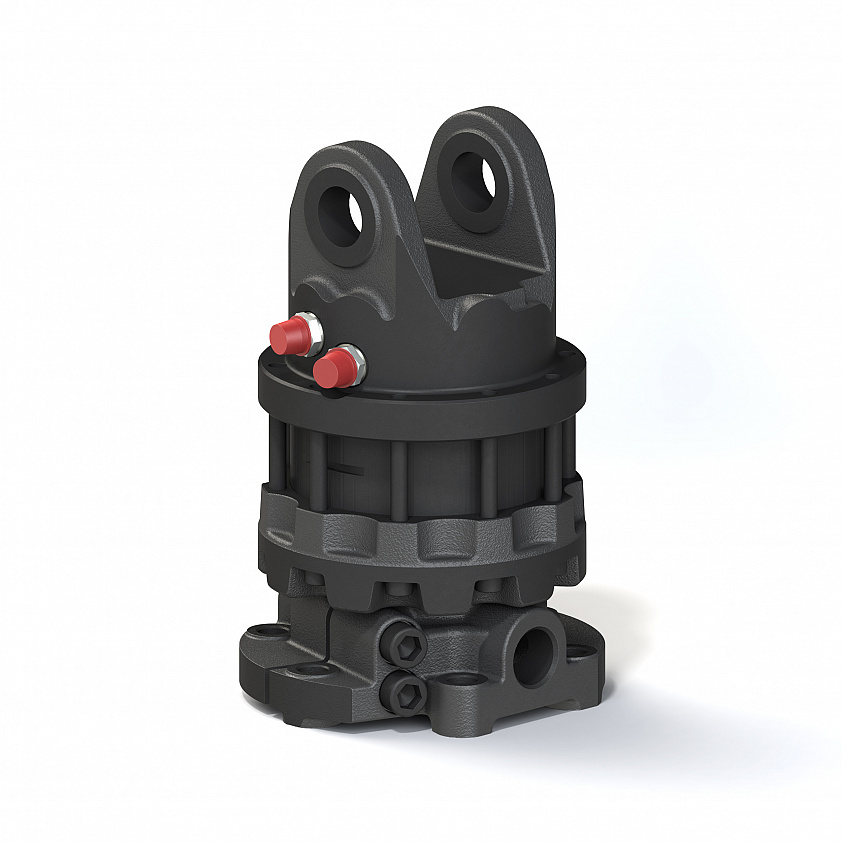

HR4-03LS

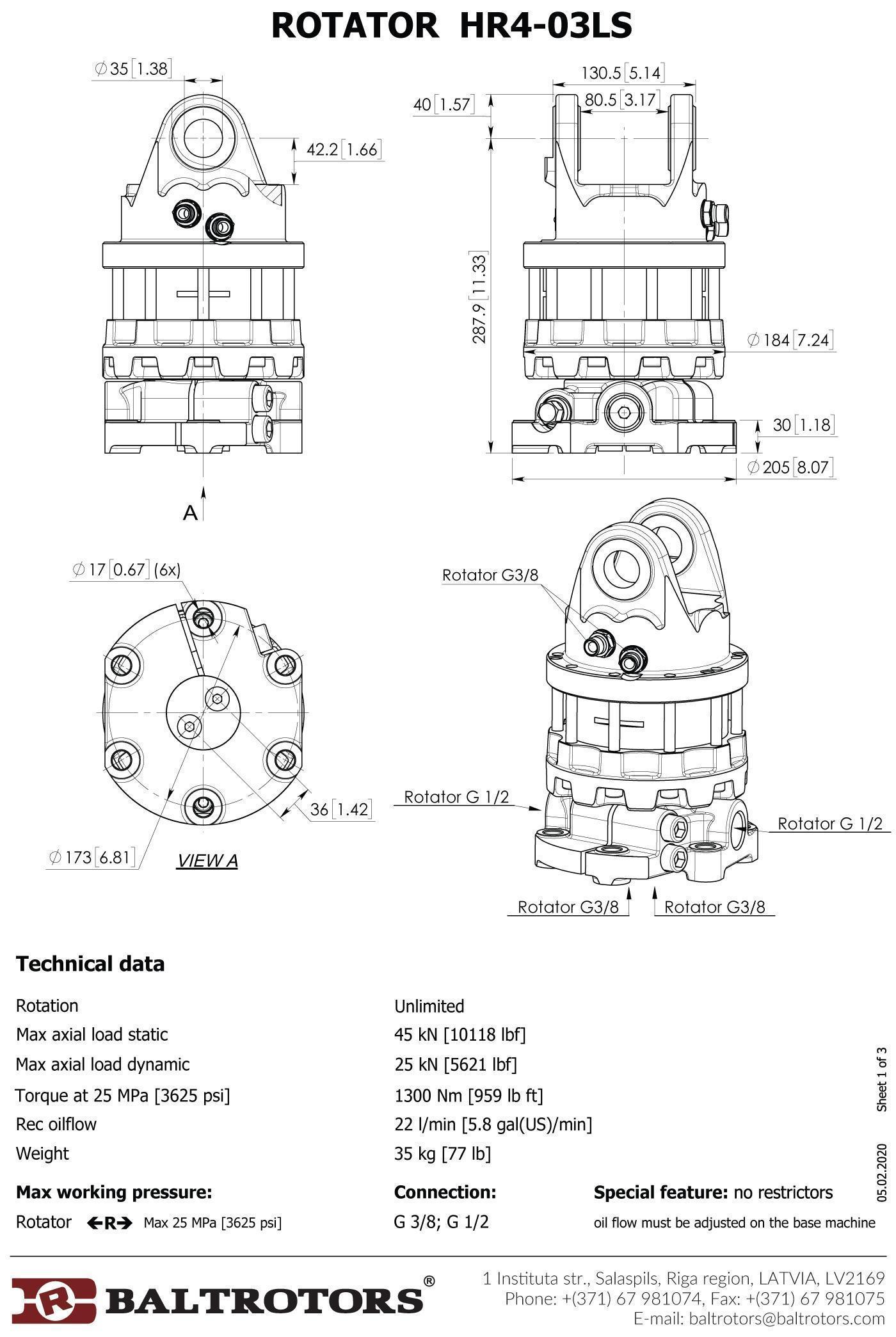

Download PDF

Description

Rotator specially designed for the thinning harvester heads. Not equipped with restrictors.

Upper connection - FORK form factor of the knuckle joint

Lower connection - FLANGE (to be mounted on the grapple)

Compare this product
alt
Technical specification
Dimensions
Compatible products
Rotation Unlimited
Max. axial load static 45 kN (10118 lbf)
Max. axial load dynamic 25 kN (5621 lbf)
Torque 1300 Nm (959 lb ft)
Rec. oilflow 22 l/min
Weight 35 kg
Upper connection L 80.5 mm (3.17 in)
Upper connection D 35 mm (1.38 in)
Warranty 1 year
BR20KS

BR20KS

BR22KS

BR22KS

BR2C

BR2C

BR2

BR2
