Technical specification

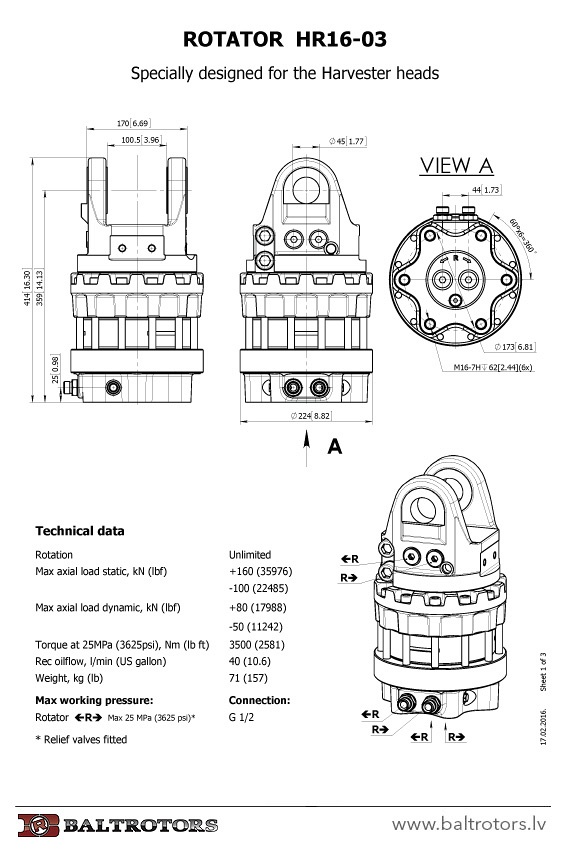

Dimensions
Compatible products
Rotation Unlimited
Max. axial load static +160 -100 kN (+35976 -22485 lbf)
Max. axial load dynamic +80 -50 kN (+17988 -11242 lbf)
Torque @-MPa 3500 Nm (2581 lb ft)
Rec. oilflow 40 l/min
Weight 71 kg
Upper connection L 100.5 mm (3.96 in)
Upper connection D 45 mm (1.77 in)
Warranty 1 year
