GR60DBX

Download PDF

Description

A durable Double Bearing solution for compressive loads, suitable for professional use in

+Extra protection hose guard.

Knuckle joint form factor:

Upper connection - FORK (pin not included)

Lower connection - AXLE (to be built in the grapple)
Warranty 2 years

Compare this product
alt
Technical specification

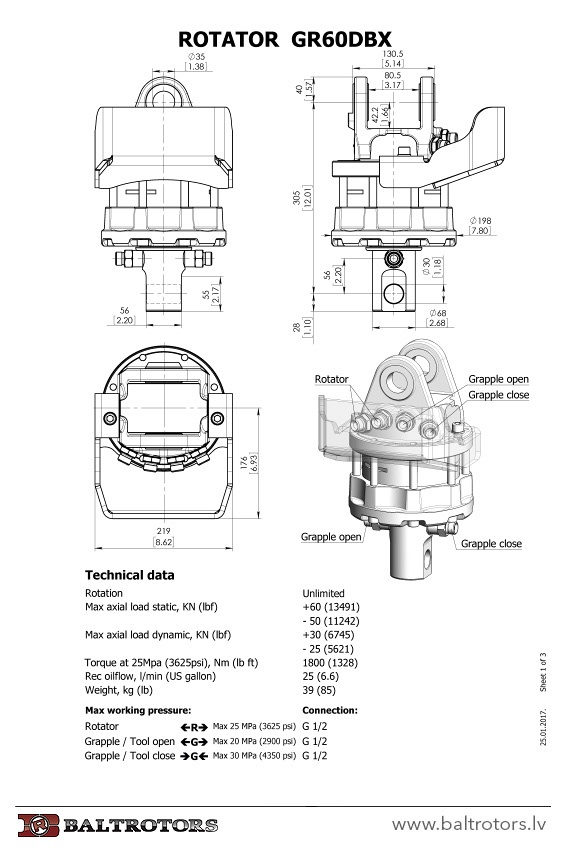

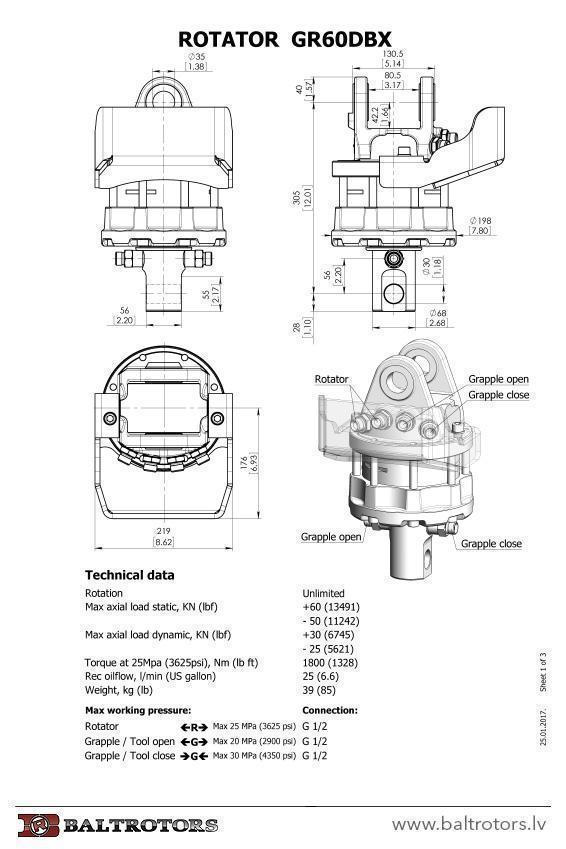

Dimensions
Compatible products
Rotation Unlimited
Max. axial load static 60 kN (13491 lbf)
Max. axial load dynamic 30 Kn (6745 lbf)
Torque @-MPa 1800 Nm (1328 lb ft)
Rec. oilflow 25 l/min
Weight 39 kg
Upper connection L 80.5 mm (3.17 in)
Upper connection D 35 mm (1.38 in)
Warranty 2 years
