GR603DBX

alt
alt
alt
Prev GR603DB Next GR603-2

GR603DBX

Download PDF

Description

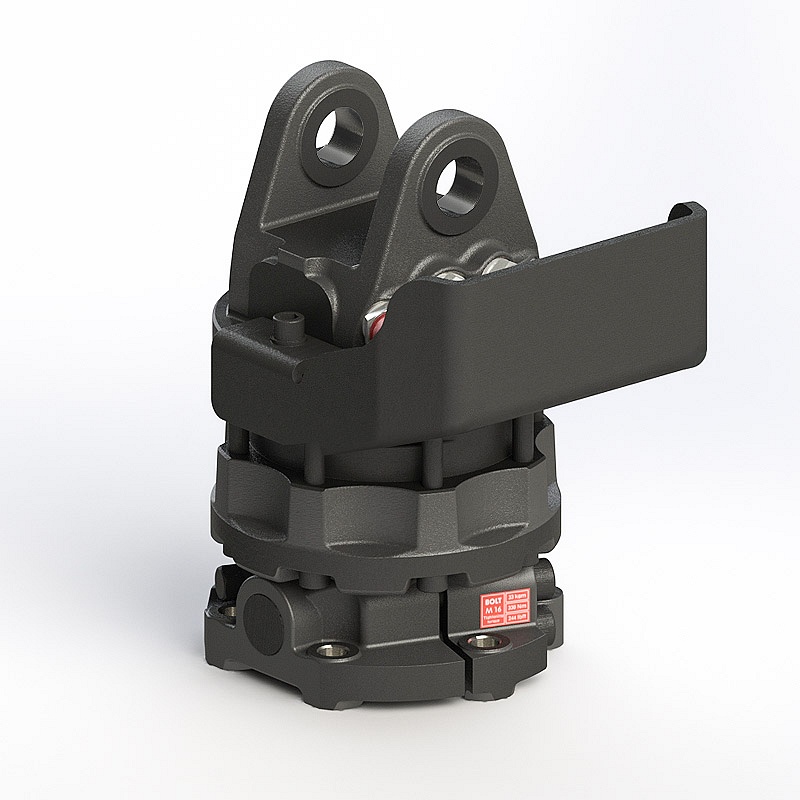

Modification of GR603DB rotator, equipped with extra-durable arched hose guard for even better protection of hoses.

Upper connection - FORK form factor of the knuckle joint.

Lower connection - FLANGE form factor, to be mounted on the grapple/tool.

Compare this product
alt
Technical specification

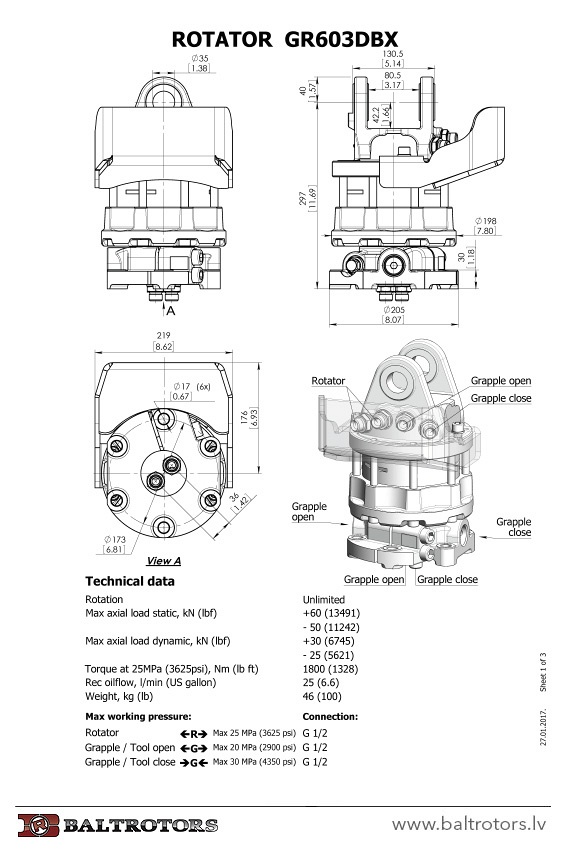

Dimensions
Compatible products
Rotation Unlimited
Max. axial load static 60 kN (13491 lbf)
Max. axial load dynamic 30 kN (6745 lbf)
Torque 1800 Nm (1328 lb ft)
Rec. oilflow 25 l/min
Weight 46 kg
Upper connection L 80.5 mm (3.17 in)
Upper connection D 35 mm (1.38 in)
Warranty 2 years
BR20KS

BR20KS

BR20KSC

BR20KSC

BR22KS

BR22KS

BR2C

BR2C

BR2

BR2
