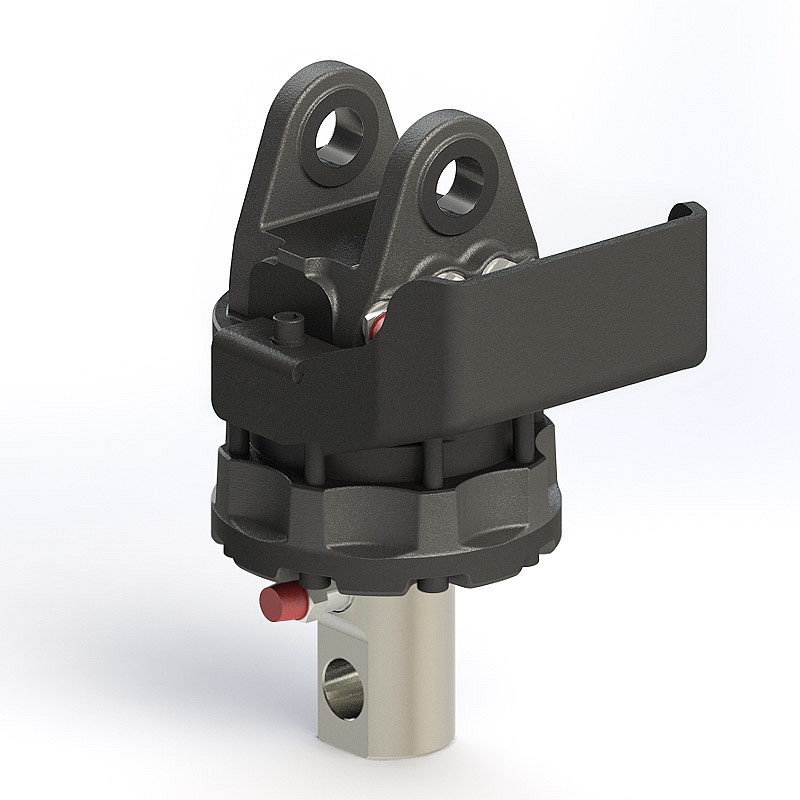

GR60/78X

alt
alt
alt
Prev GR60/78 Next GR60/78DB

GR60/78X

Download PDF

Description

Lightweight cost-effective solution suitable for ATV (All Terrain, small agricultural and forestry Vehicles).

Knuckle joint form factor:

Upper connection - EYE

Lower connection - AXLE, to be built in grapple.

Warranty 2 years

Compare this product
alt
Technical specification

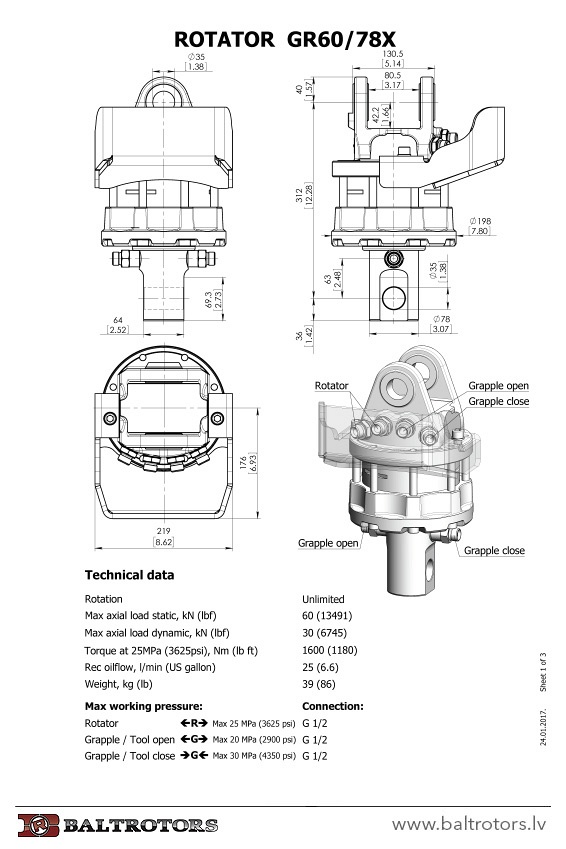

Dimensions
Compatible products
Rotation Unlimited
Max. axial load static 60 kN (13491 lbf)
Max. axial load dynamic 30 kN (6745 lbf)
Torque @-MPa 1600 Nm (1180 lb ft)
Rec. oilflow 25 l/min
Weight 39 kg
Upper connection L 80.5 mm (3.17 in)
Upper connection D 35 mm (1.38 in)
Warranty 2 years
BR2

BR2

BR20KS

BR20KS

BR20KSC

BR20KSC

BR22KS

BR22KS
