GR55MF

alt
alt
alt
Prev GR55-01 Next GR55MFX

GR55MF

Download PDF

Description

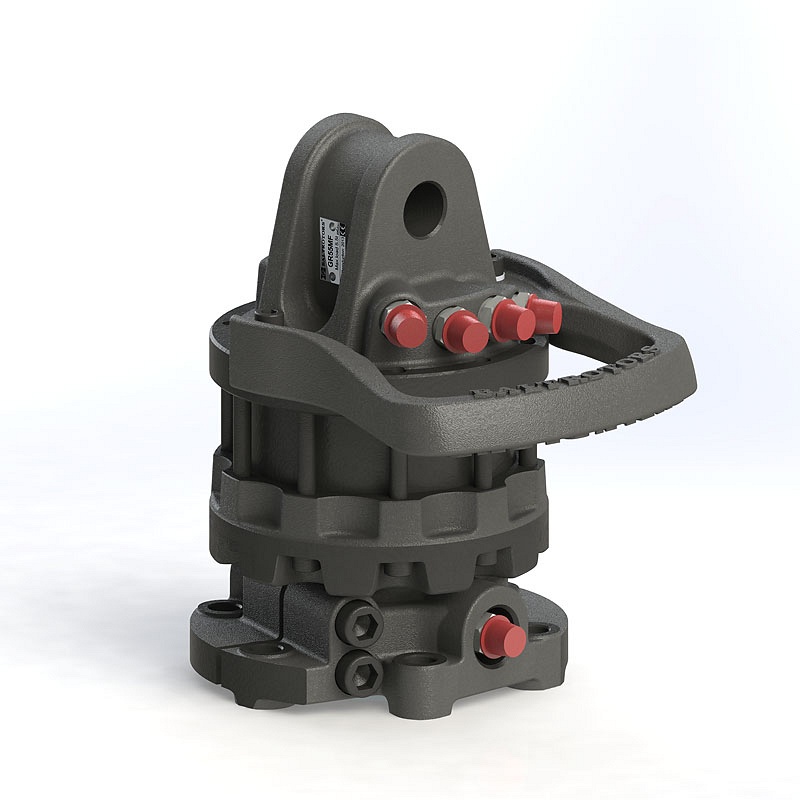

Modification of GR46/68M rotator with 173 mm flange-type lower connection

Upper connection - EYE form factor of the knuckle joint.

Lower connection - FLANGE form factor, to be mounted on the grapple/tool.

Compare this product
alt
Technical specification

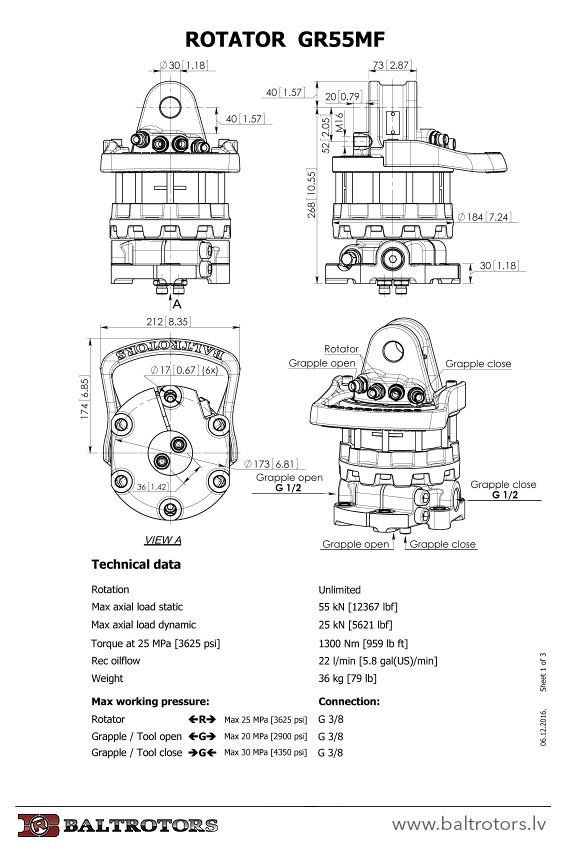

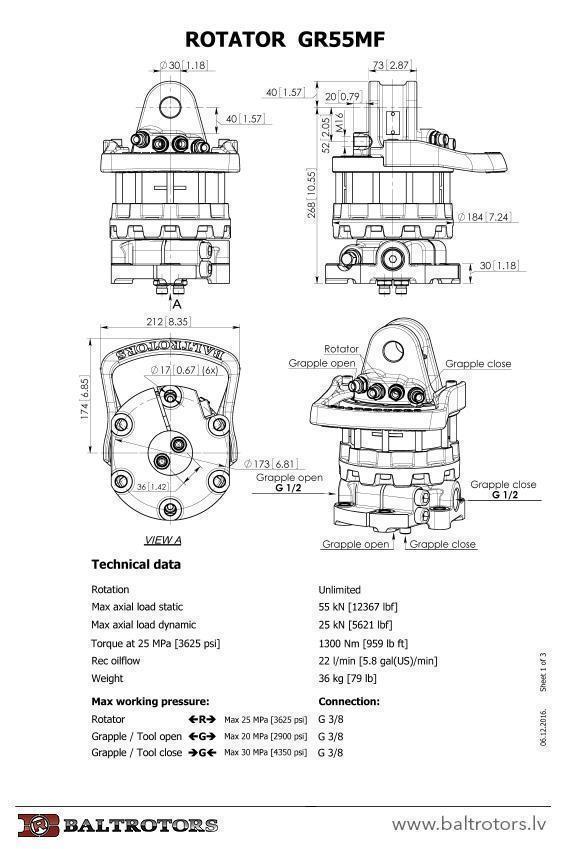

Dimensions
Compatible products
Rotation Unlimited
Max. axial load static 55 kN (12367 lbf)
Max. axial load dynamic 25 kN (5621 lbf)
Torque @-MPa 1300 Nm (959 lb ft)
Rec. oilflow 22 l/min
Weight 36 kg
Upper connection L 73 mm (2.87 in)
Upper connection D 30 mm (1.18 in)
Warranty 2 years
BR1-A

BR1-A

BR4-A

BR4-A

BR10-A

BR10-A

BR40-A

BR40-A
