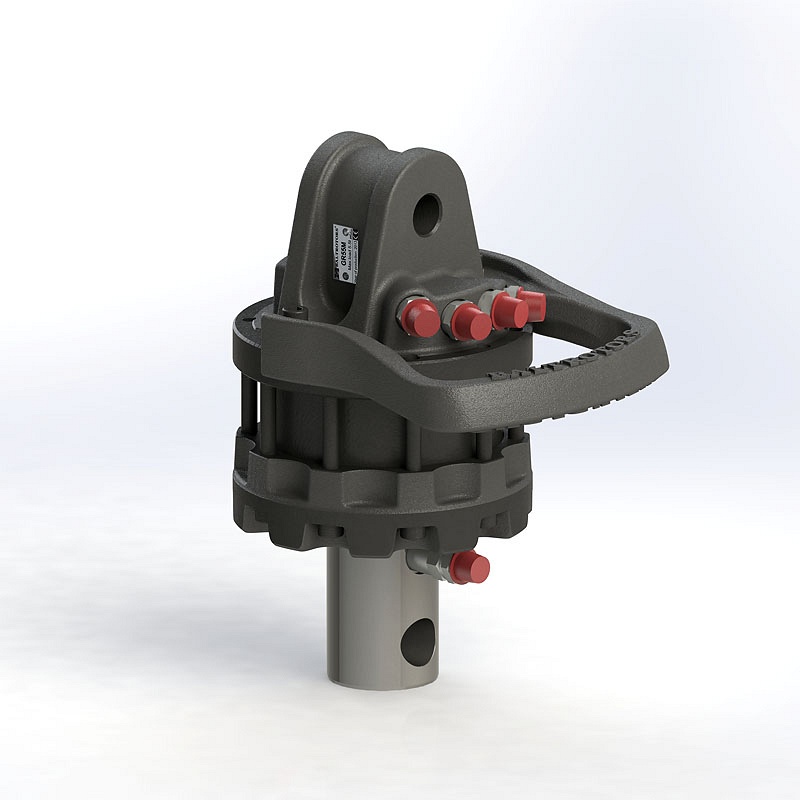

GR55M

Download PDF

Description

Lightweight cost-effective solution suitable for ATV (All Terrain, small agricultural and forestry Vehicles).

Knuckle joint form factor:

Upper connection - EYE

Lower connection - AXLE, to be built in grapple.

Warranty 2 years

Compare this product
alt
Technical specification

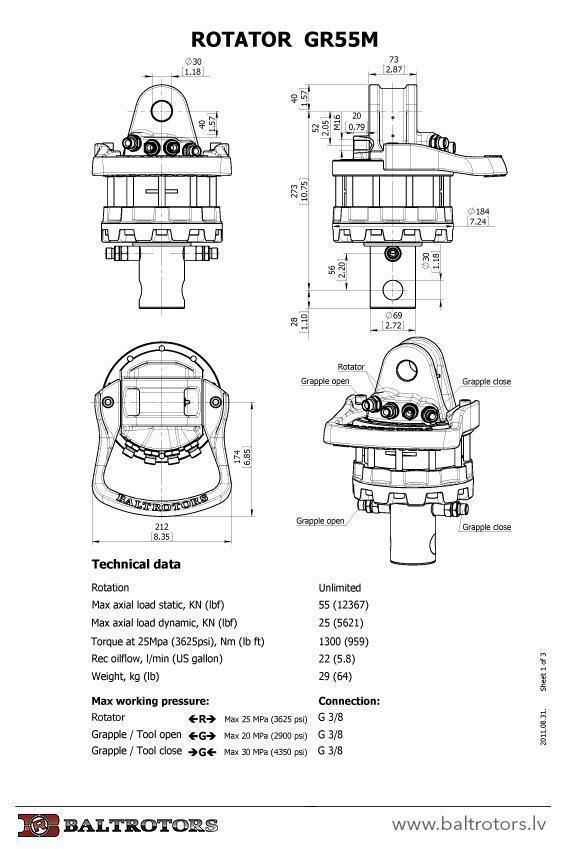

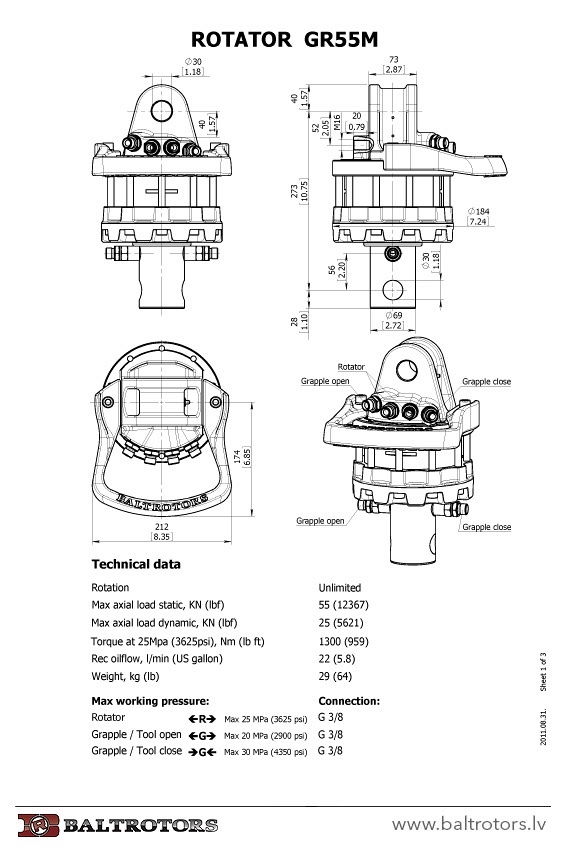

Dimensions
Compatible products
Rotation Unlimited
Max. axial load static 55 kN (12367 lbf)
Max. axial load dynamic 25 kN (5621 lbf)
Torque @-MPa 1300 Nm (959 lb ft)
Rec. oilflow 22 l/min
Weight 29 kg
Upper connection L 73 mm (2.87 in)
Upper connection D 30 mm (1.18 in)
Warranty 2 years
BR1-A

BR1-A

BR10-A

BR10-A

BR4-A

BR4-A

BR40-A

BR40-A
