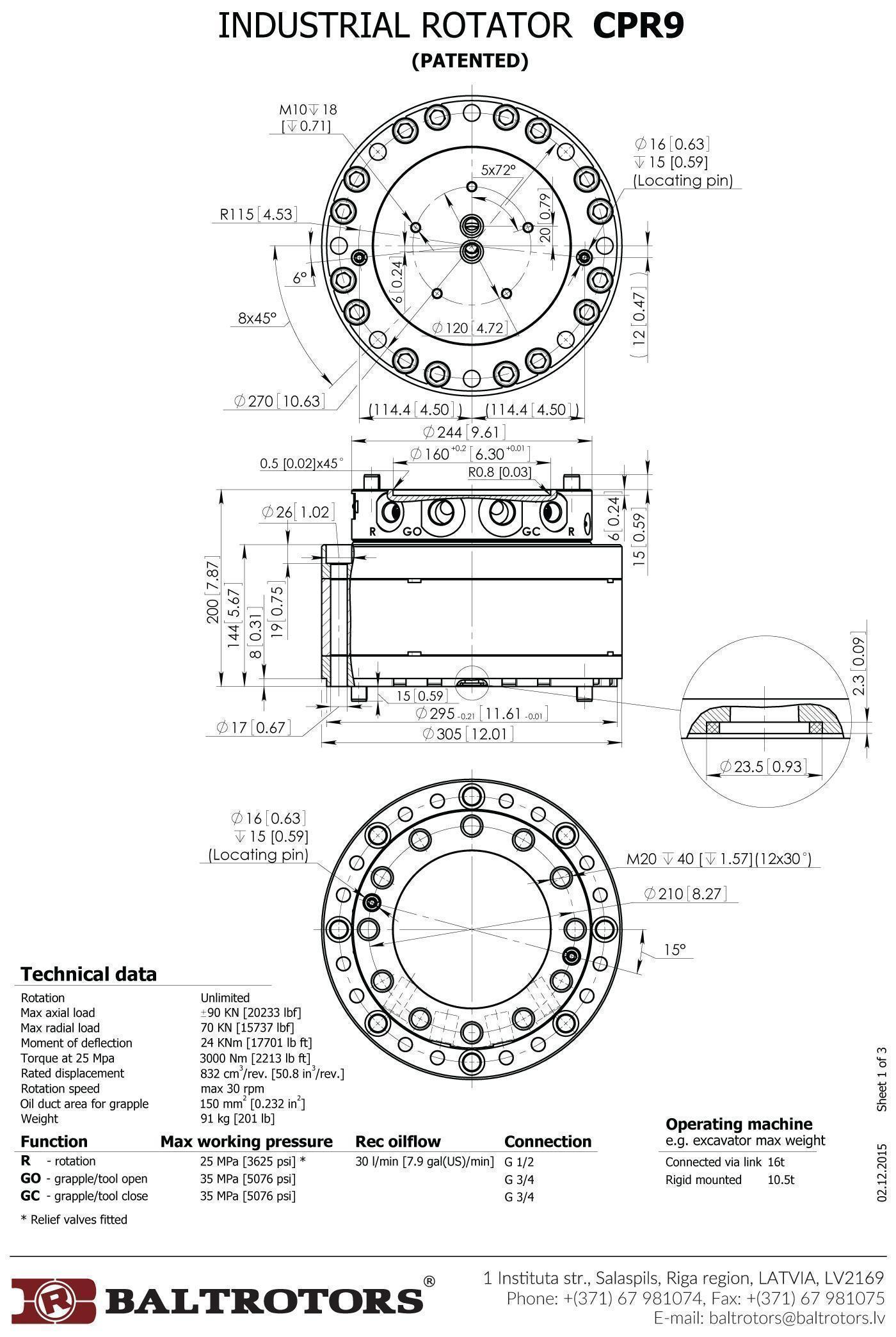

Patented axial boxer-type piston rotator.
Suitable for poly-grapples, sorting grabs, high capacity grapples and other attachments.
CPR rotators are ideal for working conditions where flat-body rotator models and high torque is required.
Max axial load static - theoretical maximum load (without accelerations) for link mounted applications.
|Max. axial load static||±330 kN (±74187 lbf)|
|Max. axial load dynamic||±90 kN (±20233 lbf)|
|Max radial load||70 kN (15737 lbf)|
|Deflection||24 kNm (17701 lb ft)|
|Torque||3000 Nm (2213 lb ft)|
