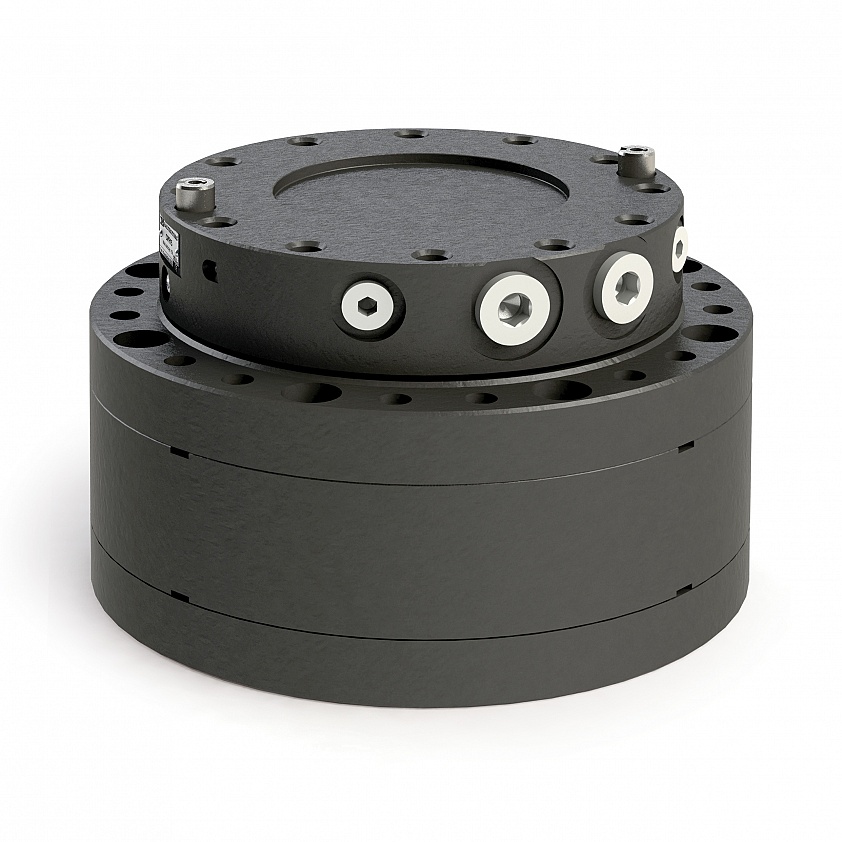

CPR15
CPR15
Description
Patented axial boxer-type piston rotator.
Suitable for poly-grapples, sorting grabs, high capacity grapples and other attachments.
CPR rotators are ideal for working conditions where flat-body rotator models and high torque is required.
Max axial load static - theoretical maximum load (without accelerations) for link mounted applications.

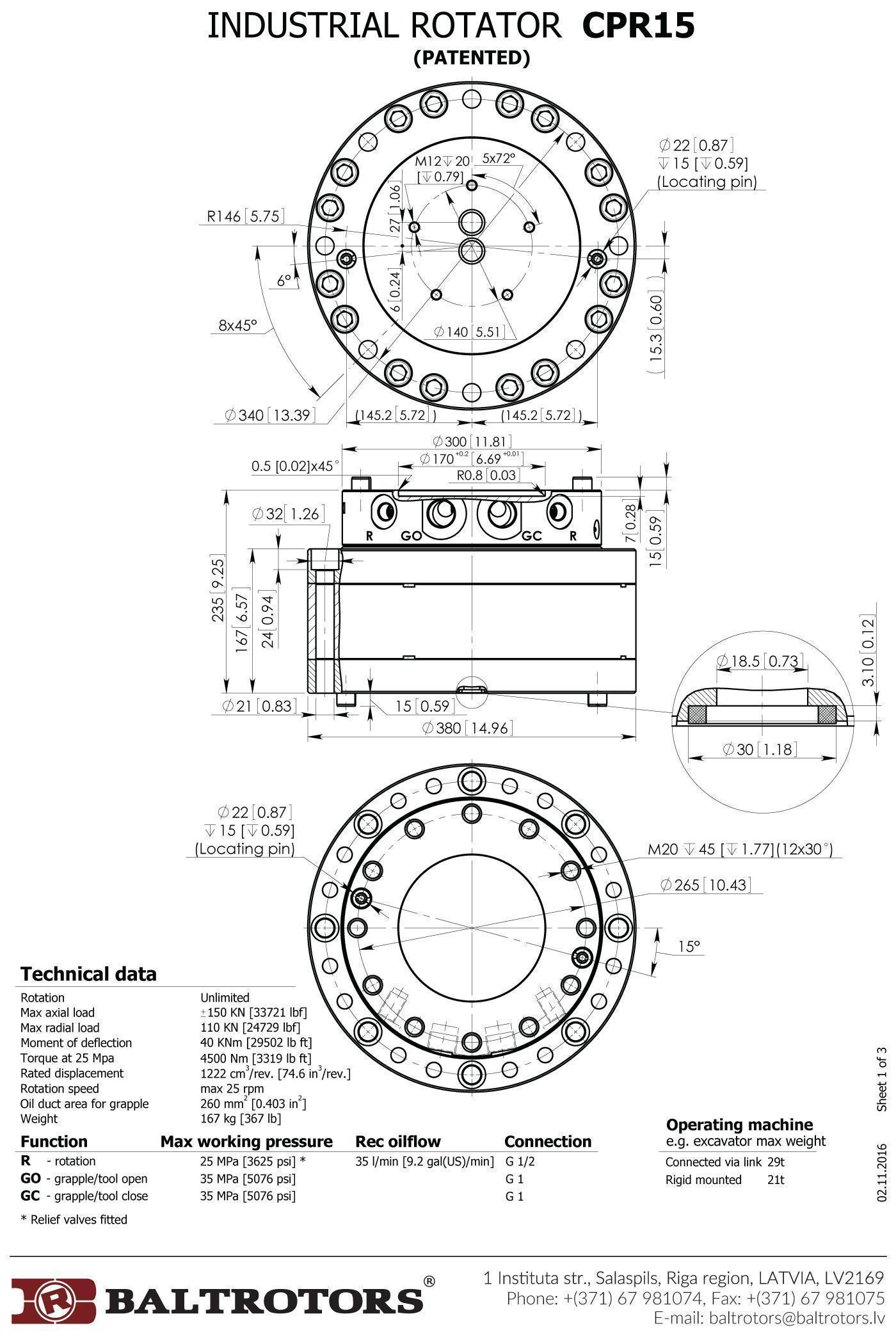

Technical specification
Dimensions
Compatible products
|
Max. axial load static | ±550 kN (±123645 lbf) |
|
Max. axial load dynamic | ±150 kN (±333721 lbf) |
|
Max radial load | 110 kN (24729 lbf) |
|
Deflection | 40 kNm (29502 lb ft) |
|
Torque | 4500 Nm (3319 lb ft) |
|
Weight | 167 kg |
